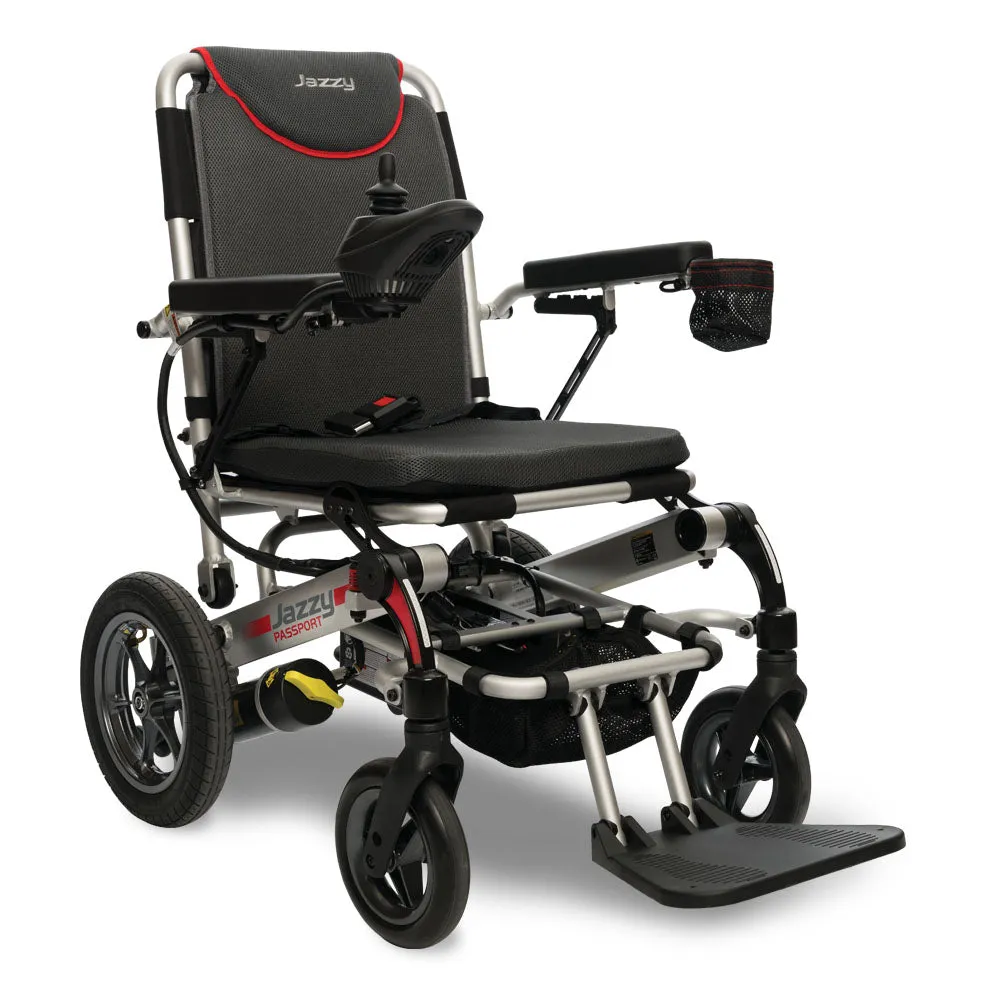

Simply fold and travel with the Jazzy® Passport. This compact power chair folds in just a few steps and offers convenient storage and ample foot room. Travel in comfort with the Jazzy Passport.
Features:
- A compact and lightweight design makes traveling a breeze
- Back seat pocket for extra storage while on-the-go
- Folds in just a few simple steps for effortless transport
- Includes convenient, under seat mesh storage bag, mesh cup holder and 40” lap belt
- Large foot platform to accommodate the user’s comfort
- Specialty foam seat design for extreme comfort
Specification:
| Model |
Jazzy Passport
|
| Weight Capacity | 250 lbs. |
| Turning Radius | 24.25" |
| Maximum Speed1 | Up to 3.6 mph |
| Ground Clearance3 | 3” at motor |
| Overall Length3 | 40” |
| Overall Width3 | 23.5” |
| Seat-to-Ground Height | 19” |
| Seat-to-Foot Platform Height | 14.5” (no adjustment) |
| Casters | 8” solid |
| Drive Tires | 12” Pneumatic drive |
| Suspension | Limited |
| Range Per Charge1,2 | Up to 9.6 miles |
| Total Weight Without Batteries3,5 | 53 lbs. |
| Heaviest Piece When Disassembled3 | N/A |
| Standard Seating | Material: Gray, Foam Dimensions: 17.5” x 16.5” |
| Drivetrain | 2X 180W brushed motors |
| Standard Electronics | 50 amp PG VSI |
| Dual Braking System | Regenerative and electromechanical |
| Battery Requirements3 | 24 V 18Ah Lithium ion |
| Battery Weight4 | 7 lbs. |
| Battery Charger | 2-amp, off-board |
| Weight of Heaviest Piece | 54 lbs. (unit does not disassemble) |
